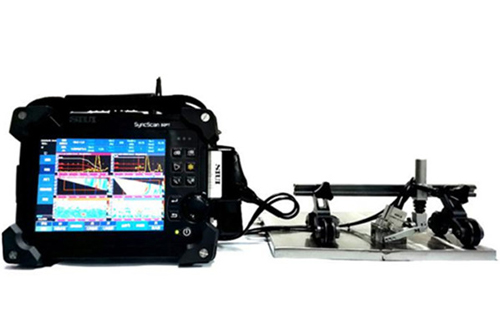

DMA: Acoustic focusing + electronic focusing

• DMA: Using dual matrix array probes.
• Two Groups: Two groups of elements and different angles to fully cover the whole weld area.
• TR Mode: Support transmit and receive longitudinal waves for better penetration and near-surface resolution.
• Adjustable Focus Area: The diamond-shaped focus area can be adjusted to cover the testing thickness.
• Creeping Wave: Excitation of creeping waves to cover near-surface.
• SNR: The "pseudo-focus effect" produces better focusing effect and signal-to-noise ratio.

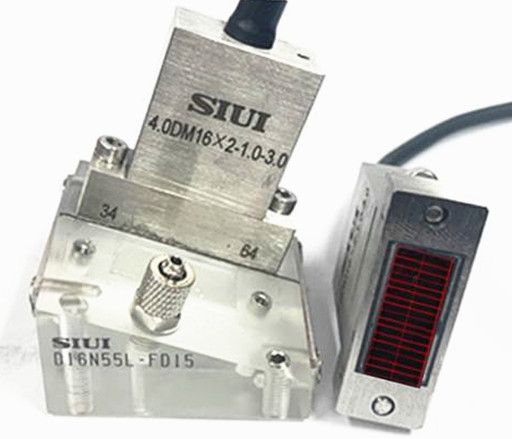

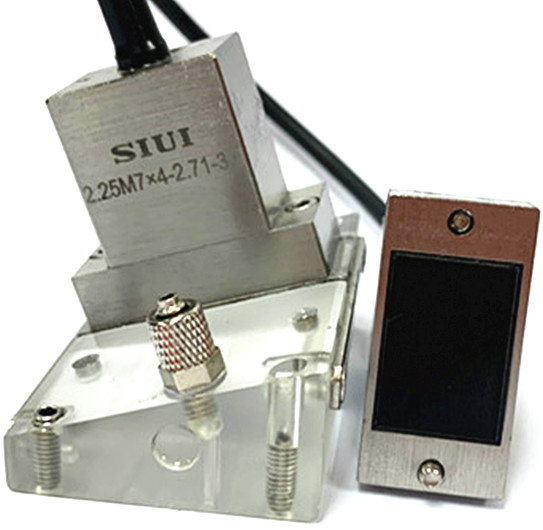

Dual Matrix Array Probes



Software

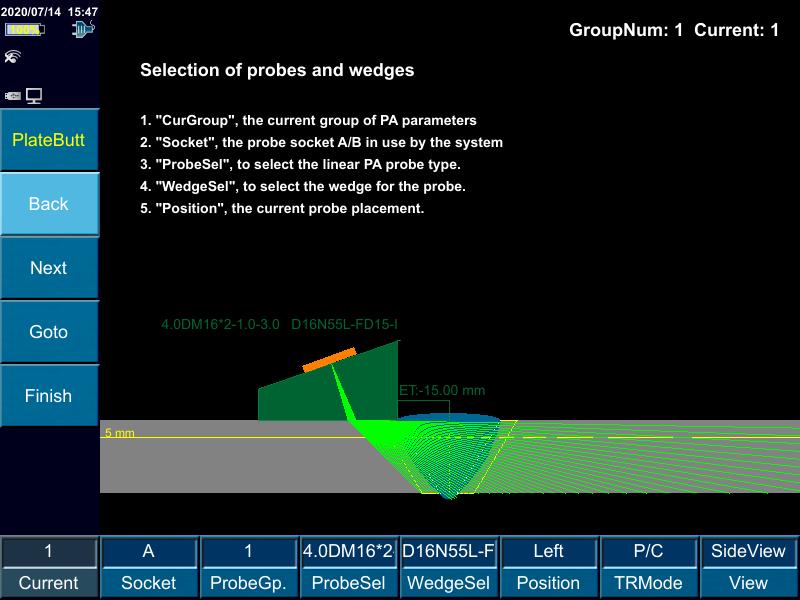

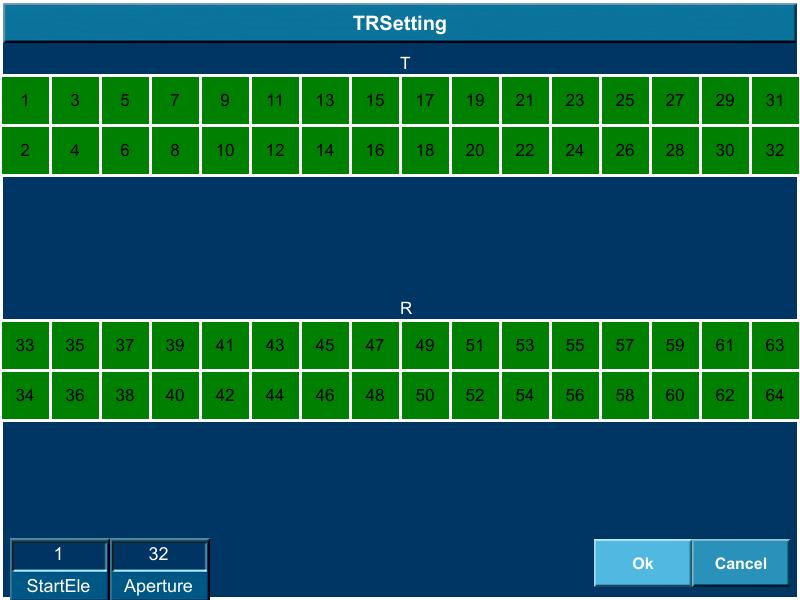

                  Beam coverage simulation                                       TR setting interface                                                                  SuporUp PC Software

Test Result

• 4.0DM16×2-1.0-3.0 probe for testing austenitic stainless steel with thickness 15mm

                                                                     Bevel non-fusion


• 2.25DM7×4-2.71-3.0 probe for testing austenitic stainless steel with thickness 40mm

                                                                       Non-fusion

• 4.0DM16×2-1.0-3.0 probe for testing stainless steel pipe (φ273×26.5mm)

                                                                                         Defect
